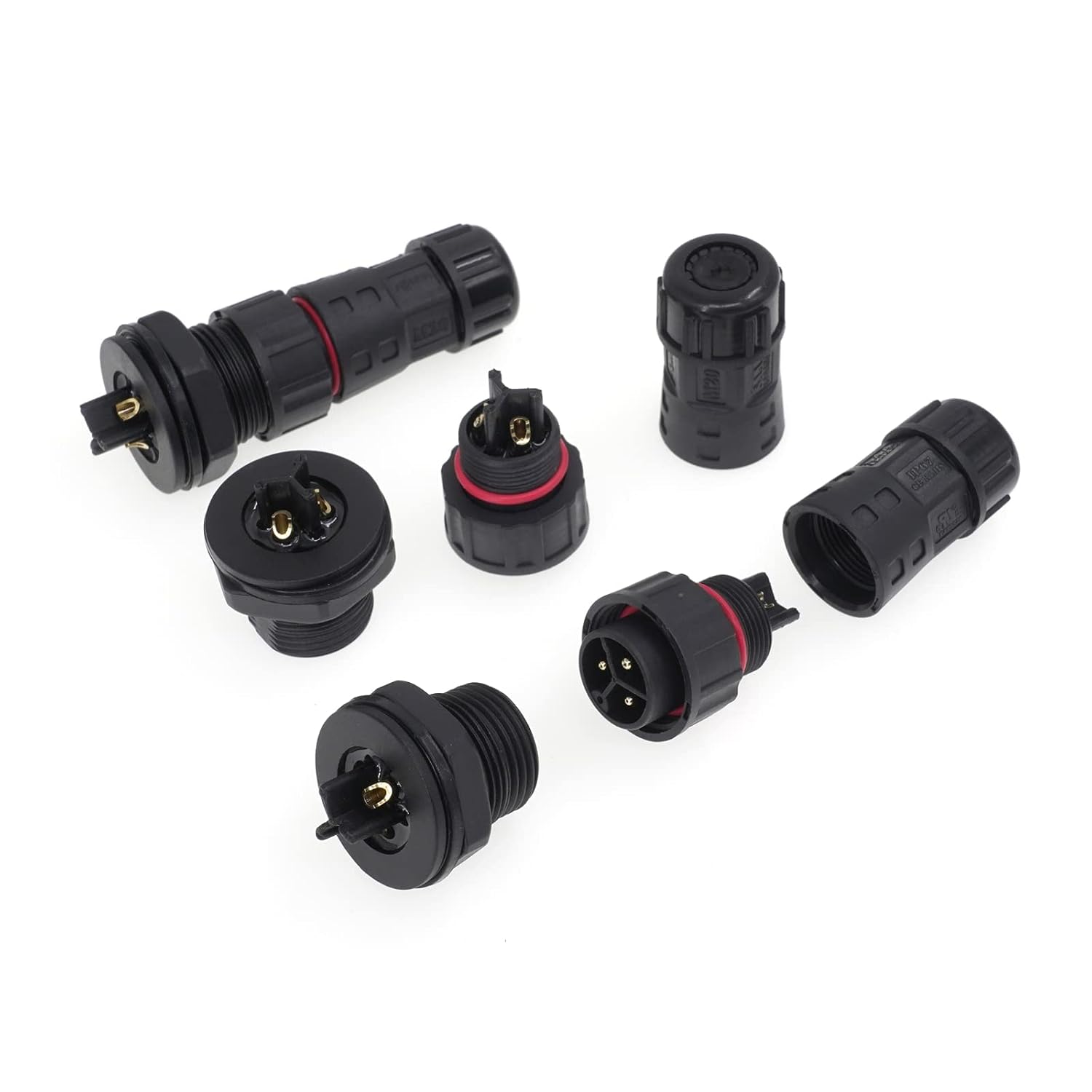

AOHUA IP68 Waterproof Connector (4-Pack), M20 3-Pin Industrial/Aviation Connector, (300V/15A) Male Plug & Front Female Panel Mount for Outdoor Electrical Wire Range Ø5.0-9.5mm, CE, UL, TUV, ROHS

M20 wire to front female panel connector technical specifications: * Certification: UL TUV CE IP67 ROHS certification * Packing: 4 set pack ( Comes with 2 sets of different sized grommets to accommodate different size wires. ) * Cable Range:5.0-7.5mm/7.5-9.5mm ( If you use a cable that is too thin, then the seal won't even cover IP67!) * Waterproof rating: IP67 advanced waterproof connector * Rated voltage: ≤ 300V * Rated current: ≤ 15A * Working Temperature: -40°C~105°C * Material: plastic (nylon), seal ring (silicon) * Colour: Black * Connection method: The soldering plug is easy to install, male and female can be separated and easy to install. * Scope of application: connectors are suitable for quick connection of garden and outdoor displays, floor heating, beacons, cruise ships, LED billboards, LED tunnel lights, LED street lights, external wiring, etc. * USAGE: Twist the port of the waterproof connector, insert the wire directly, soldering with electric soldering iron to secure the wire, and then close the cap. Please make sure to connect the wire correctly. * Note: when finished, check that all nuts are tight. Inserted to panel from inside and screwed from outside. （Front Panel ）Dust cap is without a certificate.

• ✅ 【Universal M20 3 Pin Waterproof Industrial Connector (Pack of 4)】: Features dual cable ranges (5.0-9.5mm) for superior compatibility with most standard power cords. Supports wire gauge ≤1.5mm² (approx. 14 AWG). Ideal as waterproof wire connectors or an extension cord repair kit.
• ✅ 【Robust IP68 Protection & High-Performance Specs】: Achieves IP68 waterproof/dustproof rating. Rated for 300V/15A and extreme temperatures (-40°C~105°C). Backed by UL, TUV, CE, IP68, ROHS certifications. Mechanical life of 3000 mating cycles ensures long-term reliability in demanding outdoor electrical box waterproof and industrial settings.
• ✅ 【Quick & Flexible Field Installation】: Field assembly design with thread connection makes installation simple and secure. (Solder option available). Easily create reliable connections for repairs, extensions, or within junction box / outdoor electrical box setups.
• ✅ 【Premium Nylon PA66 for Durability】: Constructed with high-grade Nylon PA66, offering excellent high-temperature resistance (105°C) and superior 94V-0 flame retardancy. Essential for robust waterproof electrical connectors and enclosures.
• ✅ 【Versatile Applications】: Perfect for LED systems (LED billboards, tunnel lights, landscape/garden/spike lights, strip connectors) and demanding environments (coastal, outdoor/solar/wind/mining engineering, machinery). Excellent as low voltage wire connectors for landscape lighting or LED light connectors.
